ELA 10-Eclipse

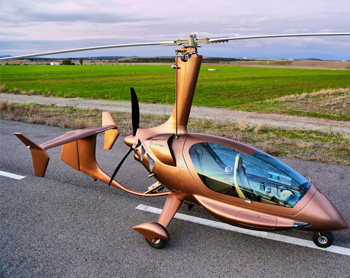

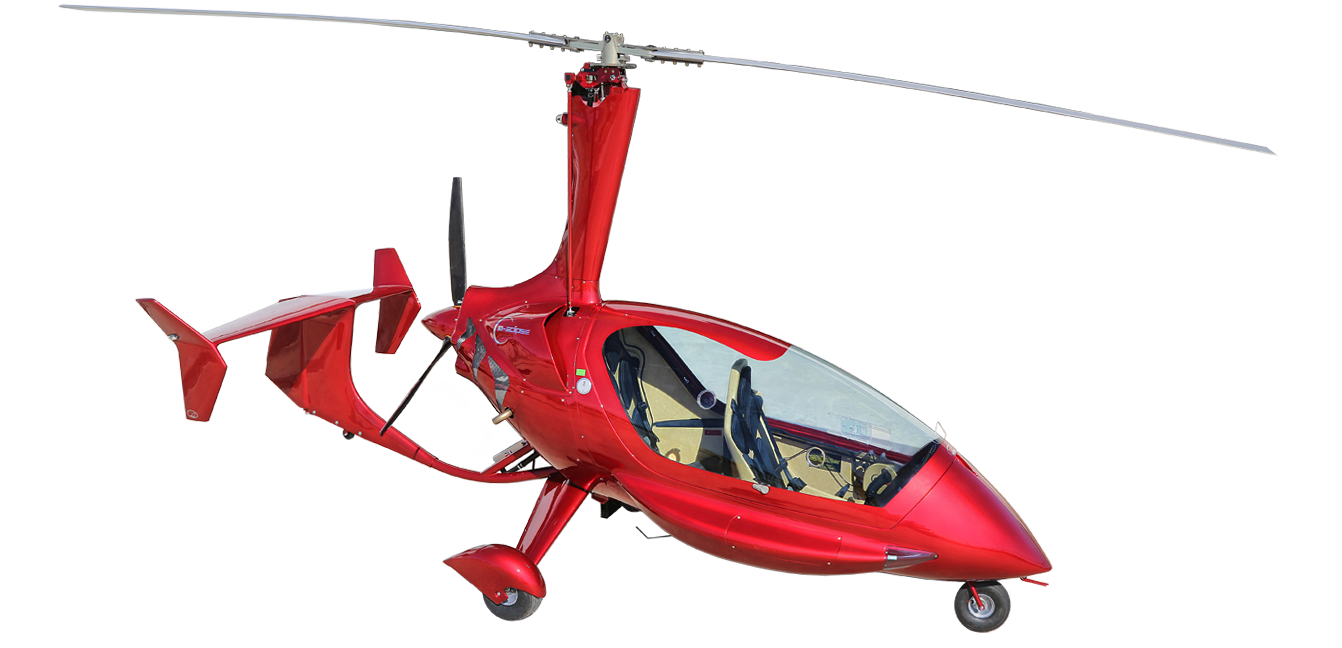

The 10-Eclipse is a two-seat, tandem configuration, closed-cockpit, open-top gyroplane with a state-of-the-art design and standard "Premium" trim.
It is the most advanced, efficient and refined gyroplane ever designed by ELA Aviation. It is the second model of a new generation of innovative gyroplanes, with a high technological level and created using the most advanced design techniques, reconciled with the craftsmanship of our master bodybuilders.
Datos
| ROTAX 912 ULS | ROTAX 914 UL TURBO | |
|---|---|---|
| Empty Weight | 275kg | 285kg |
| Maximum Takeoff Weight | 500kg | 530kg |
| Maximum Speed | 180km/h | |
| Cruising Speed | 150-165 km/h | |
| Fuel Capacity | 87 liters | |
| Range | 720-840 km | |
| Fuel Consumption | 13-20 liters/h | |
| Takeoff Distance | 50-120 meters | |
| Landing Distance | 0-20 meters | |
Functionality
– The ELA 10-Eclipse is equipped with three luggage compartments.
– Full instrument panel as standard.
– Easy-opening engine air intakes for pre-flight inspections with ease.
– Engine cooling system designed to operate in the most adverse climates.
– Functional design of the tail empennage that ensures unprecedented stability at high speeds for cabin autogyros.
– Powerful hydraulic wheel brakes.
– Pneumatic rotor trim/brake system, designed by ELA Aviación 20 years ago and imitated by most manufacturers.
– Powerful automatic pre-starter (300 rpm).
Equipment
– Structure made of AISI 4130 chrome-molybdenum steel.
– Fuselage, tail empennage, and fairings made of carbon fiber.

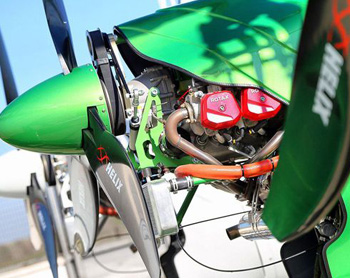

– Rotax 912 ULS engine (100 hp).
– 8.5m (28ft) rotor.
– Helix H-50 three-blade carbon fiber propeller.
– Windshield for summer flight.
– Powerful pneumatic pre-starter.
– Electro-pneumatic rotor trim/brake system.
– Mechanical trim.
– Hydraulic wheel brakes with parking system.
– 87-liter (23-gallon) fuel tank with fuel gauge.
– 4-point safety harness.
– Seats upholstered in high-quality beige or red.
– High-quality mottled interior in beige/white or black/red.
– Wide range of metallic, solid, or matte colors available.
– Powerful cabin heating.
– LED landing lights.
– Strobe light on mast.
– USB 5V-2A or 12V-10A cigarette lighter socket on instrument panel.
– Oil thermostat.
– Friction clutch.
Instrumentation
– Digital anemometer.
– Digital altimeter/variometer.
– Vertical compass.
– Rotor trim manometer.
– "Kanardia EMSIS" digital multi-function instrument that monitors all engine parameters.
– VHF radio TQ AVIONIK KRT2-S with line input for music.
